Exploring Peptide Separation Techniques in Analytical Research
Author: Dr. Numan S. Date: June 15, 2025
Discover different peptide separation techniques used in analytical research, how they work, and why they are essential for purifying and analyzing peptides.
What Are Peptide Separation Techniques and Why Are They Important?
Peptide separation techniques are critical tools in analytical research, enabling scientists to isolate, purify, and analyze peptides with precision. Peptides, as short chains of amino acids, are often derived from complex biological or synthetic mixtures. These mixtures can contain byproducts, unreacted precursors, or unrelated biomolecules that must be removed to ensure the purity and integrity of peptide samples. Thus, peptide separation techniques form the foundation of peptide purification and downstream analytical applications such as mass spectrometry, protein quantification, and structural characterization.
In analytical research, precise peptide separation is vital for both qualitative and quantitative studies. The ability to accurately identify and quantify peptides relies on minimizing background noise from unrelated compounds. Without proper separation, even highly sensitive detection methods like HPLC or MS can yield inconclusive results. Moreover, peptide separation is essential in drug development, clinical diagnostics, and proteomics. It ensures that peptide-based therapeutics meet regulatory purity standards and that research involving protein characterization is both reproducible and accurate [1].
Common Peptide Separation Techniques Used in Analytical Research
A variety of chromatographic and electrophoretic techniques are commonly employed for peptide separation. High-performance liquid chromatography (HPLC) is the most widely used method, especially in reverse phase chromatography (RPC) mode. In RPC, peptides are separated based on hydrophobicity using a nonpolar stationary phase and a polar mobile phase gradient. This method is well-suited for a wide range of peptide sequences and can be coupled with UV or MS detectors for enhanced analysis.
Ion-exchange chromatography (IEC) is another staple technique, used to separate peptides based on net charge. It includes both cation- and anion-exchange systems, which are especially effective for purifying charged peptides from complex mixtures. Size-exclusion chromatography (SEC), meanwhile, separates peptides by molecular size, enabling the removal of aggregates or larger protein contaminants from smaller peptide targets.
Capillary electrophoresis (CE) offers extremely high separation efficiency and is useful for analyzing charged peptides in small volumes. CE is especially advantageous for separating peptides with similar masses but different charge states, and its compatibility with mass spectrometry makes it ideal for proteomic workflows [2]. Each of these peptide separation techniques offers unique strengths depending on the sample complexity, peptide properties, and analytical objectives.
How to Choose the Right Peptide Separation Technique for Your Research Needs
Selecting the appropriate separation method requires careful consideration of the peptide mixture’s characteristics. Key factors include molecular weight, charge, hydrophobicity, solubility, and the complexity of the sample matrix. For hydrophobic peptides, reverse phase chromatography on C18 or C8 columns is often ideal. For peptides with extreme isoelectric points, ion-exchange chromatography can provide superior resolution.
When speed and miniaturization are priorities, capillary electrophoresis may be the technique of choice due to its high separation efficiency and minimal sample requirements. SEC, although limited in resolution, is valuable when size-based separation is necessary—particularly for eliminating larger protein contaminants from peptide solutions.
In practice, method selection also depends on downstream requirements. For instance, peptides destined for mass spectrometry should be separated by HPLC using MS-compatible buffers, while peptides for bioassays may require milder conditions to maintain biological activity. Automated peptide separation platforms, which integrate multiple techniques, offer additional flexibility for high-throughput research environments [3].
How Peptide Separation Techniques Support Protein Characterization and Quantification
Peptide separation is integral to modern protein characterization and quantification workflows. In bottom-up proteomics, proteins are enzymatically digested into peptides, which are then separated and identified using tandem mass spectrometry. The separation step reduces sample complexity, improves detection limits, and ensures that each peptide is accurately attributed to its parent protein.
Moreover, separation techniques like HPLC and CE facilitate the quantification of peptides that serve as surrogates for protein abundance. These methods enable researchers to construct peptide maps that reveal post-translational modifications, degradation products, and isoform-specific sequences. Accurate peptide separation thus enables both structural elucidation and precise quantitation of proteins in biological samples.
Size-exclusion chromatography also plays a role in protein quantification by enabling the measurement of protein aggregates and fragments. Combining peptide separation with targeted MS approaches allows for the detection of specific biomarkers, expanding the clinical relevance of peptide-based assays [4].
Technological Advances in Peptide Separation
Technological innovation continues to enhance peptide separation capabilities. Ultra-high-performance liquid chromatography (UHPLC) uses sub-2-micron particle columns and higher pressures to deliver superior separation efficiency and faster run times. UHPLC systems are especially valuable for high-throughput laboratories analyzing hundreds of samples per day.
Automated peptide separation systems now integrate sample preparation, gradient formation, column switching, and data analysis, reducing operator error and improving reproducibility. These platforms are often employed in pharmaceutical development, where consistent peptide purification and characterization are mandatory.
Another area of advancement involves novel stationary phases. Mixed-mode chromatography combines hydrophobic, ionic, and hydrogen bonding interactions, offering improved selectivity for peptides that are challenging to resolve with traditional methods. In capillary electrophoresis, enhanced capillary coatings and improved MS interfaces now enable CE-MS workflows with increased sensitivity and reproducibility [5].
Emerging methods such as supercritical fluid chromatography (SFC) and membrane-based separation systems also contribute to greener, more sustainable peptide separation workflows. These alternatives reduce solvent consumption and processing time while maintaining high separation performance.
Troubleshooting Common Issues in Peptide Separation
Common problems in peptide separation include poor resolution, peak tailing, inconsistent retention times, and low recovery. These issues often arise from column degradation, inappropriate mobile phase composition, sample overload, or peptide adsorption to surfaces.
To address resolution problems, method optimization may involve changing column chemistry, modifying gradient slopes, or adjusting buffer pH and ionic strength. For peptides prone to adsorption, using low-protein-binding materials and optimizing sample solvents can improve recovery.
In CE, peak broadening and tailing are frequently caused by inadequate capillary conditioning or peptide-wall interactions. Applying proper capillary coatings and maintaining consistent operating temperatures can mitigate these effects. Ion suppression in MS-coupled separations is another concern; using volatile salts and clean sample preparation methods minimizes such interferences.
By systematically addressing each variable and following standard troubleshooting protocols, separation efficiency and reproducibility can be restored or enhanced [1].

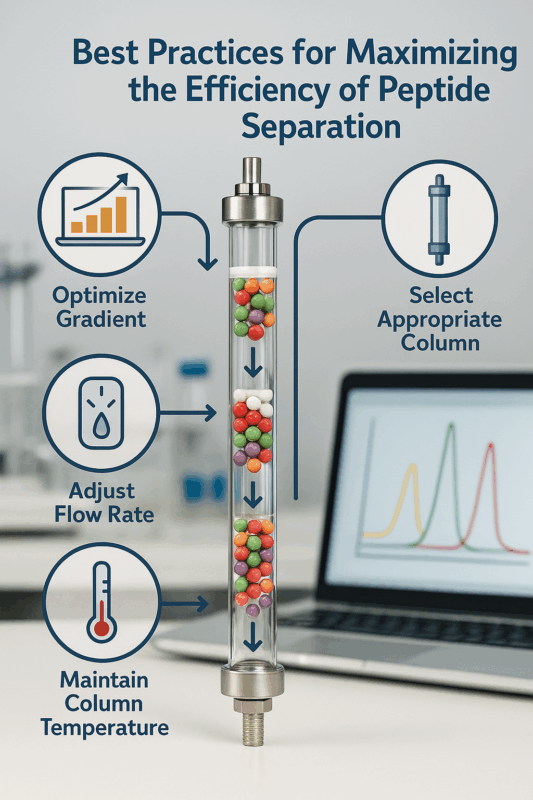

Best Practices for Maximizing the Efficiency of Peptide Separation
To achieve optimal separation efficiency, researchers should start with rigorous method development. This includes evaluating column selectivity, mobile phase compatibility, and gradient conditions. Consistent system maintenance, including column washing and leak testing, ensures stable performance.
Using internal standards and peptide reference mixtures during routine analysis helps monitor system suitability. Sample preparation is equally important; filtering, desalting, and diluting peptides in appropriate solvents reduce the risk of column fouling and peak distortion.
Temperature control also enhances reproducibility. Many peptides benefit from column heating (e.g., 30–40°C), which reduces backpressure and improves peak shape. Automated peptide separation systems can streamline these procedures by minimizing operator variability and increasing throughput.
Finally, documenting all conditions and maintaining strict adherence to validated protocols is essential for ensuring data integrity in both research and regulatory environments [4].
Case Studies: How Peptide Separation Techniques Are Used in Analytical Research
In one study, researchers employed multidimensional LC combining ion-exchange and reverse phase chromatography to achieve deep proteomic profiling in yeast. This approach enabled the identification of thousands of peptides and proteins that were not detectable using single-dimensional methods. The enhanced resolution provided by orthogonal separation methods led to improved protein characterization and quantification [1].
Another case involved the use of CE-MS to analyze neuropeptides in brain tissue. The high resolution and minimal sample requirements of CE allowed for the detection of low-abundance peptides that would have been lost in bulkier chromatographic systems. CE-MS workflows have since become standard in neurochemical research.
Pharmaceutical companies routinely use reverse phase HPLC to purify synthetic peptides, ensuring removal of truncated or misfolded sequences. One example demonstrated how automated preparative HPLC enabled the large-scale purification of a therapeutic peptide with >98% purity, meeting regulatory standards for clinical trials.
The Future of Peptide Separation Techniques in Analytical Research
The future of peptide separation is moving toward greater automation, miniaturization, and integration with high-resolution detectors. Hybrid systems combining CE, LC, and MS will provide unparalleled separation efficiency and analytical depth. Intelligent algorithms may one day adjust separation parameters in real time, optimizing gradient composition and flow rate based on real-time detector feedback.
Green chemistry principles will continue to influence the development of sustainable separation methods. These include solvent recycling systems, aqueous-compatible stationary phases, and membrane-based technologies that reduce environmental impact.
Ultimately, peptide separation techniques will remain foundational to analytical research, enabling deeper understanding of biological systems and more precise therapeutic development. Their continued evolution will drive innovation in proteomics, diagnostics, and pharmaceutical sciences.
Frequently asked questions (FAQs) about peptide separation techniques
What are the most common peptide separation techniques used in analytical research?
- The most widely used peptide separation techniques include High-Performance Liquid Chromatography (HPLC), Capillary Electrophoresis (CE), Ion-Exchange Chromatography (IEX), Reverse-Phase Chromatography (RP), and Size-Exclusion Chromatography (SEC). Each method leverages different physicochemical properties of peptides—such as charge, hydrophobicity, or size—to achieve effective separation.
How does high-performance liquid chromatography (HPLC) work for peptide separation?
- HPLC separates peptides based on their interaction with a stationary phase and a liquid mobile phase under high pressure. In peptide analysis, reverse-phase HPLC is commonly used, where peptides bind to a hydrophobic stationary phase and are eluted by increasing concentrations of an organic solvent. Differences in peptide hydrophobicity lead to differential retention times, enabling precise separation.
How do you choose the best peptide separation technique for your research objectives?
- Selection depends on several factors, including the peptide’s size, charge, solubility, complexity of the sample matrix, and downstream analytical goals (e.g., mass spectrometry). For hydrophobic peptides, reverse-phase HPLC is preferred, while for highly charged peptides, ion-exchange chromatography may be more effective. Consideration of sample throughput, resolution, and compatibility with detection systems is also crucial.
What are the common challenges in peptide separation, and how can they be overcome?
- Challenges include peptide aggregation, degradation, poor resolution, and co-elution with matrix components. These can often be addressed by optimizing pH and buffer conditions, improving column selection, incorporating sample cleanup steps like solid-phase extraction (SPE), or using gradient elution techniques. Additionally, using advanced detectors and coupling with mass spectrometry can enhance specificity and sensitivity.
How do peptide separation techniques support protein quantification and mass spectrometry?
- Separation techniques reduce sample complexity, isolate specific peptide sequences, and improve signal clarity in downstream detection systems like mass spectrometry (MS). Proper separation ensures accurate peptide identification and quantification, which is critical for applications such as proteomics, biomarker discovery, and pharmacokinetics.
What technological advancements are driving innovation in peptide separation methods?
- Recent innovations include ultra-high-performance liquid chromatography (UHPLC), multidimensional separation systems, microfluidic-based techniques, and improvements in stationary phase chemistries. Automation and integration with high-resolution mass spectrometry platforms have also significantly enhanced throughput, sensitivity, and reproducibility in peptide analysis workflows.
References
- Al Musaimi O, Jaradat D. Advances in Therapeutic Peptides Separation and Purification. Separations. 2024;11(8):233. doi:10.3390/separations11080233.
- Liang Y, Zhang L, Zhang Y. Chromatographic separation of peptides and proteins for characterization of proteomes. Chem Commun (Camb). 2023;59(3):270-281. doi:10.1039/D2CC05568F.
- Maráková K, Opetová M, Tomašovský R. Capillary electrophoresis-mass spectrometry for intact protein analysis: Pharmaceutical and biomedical applications (2018–March 2023). J Sep Sci. 2023;46(15):e2300244. doi:10.1002/jssc.202300244.
- Peng M, Zhou Y, Wang Y, et al. Identified small open reading frame-encoded peptides in human serum with nanoparticle protein coronas. J Proteome Res. 2024;23(1):368-376. doi:10.1021/acs.jproteome.3c00608.
- Liu J, Makarov AA, Bennett R, et al. Chaotropic effects in sub/supercritical fluid chromatography via ammonium hydroxide in water-rich modifiers: enabling separation of peptides and highly polar pharmaceuticals at the preparative scale. Anal Chem. 2019;91(22):13907-13915. doi:10.1021/acs.analchem.9b03109.
