High- vs. Low-Pressure Chromatography in Peptide Studies

Author: Dr. Numan S. Date: July 17, 2025

Sections:

An explanation of high pressure vs low pressure chromatography in peptide studies.

Why Chromatography Matters in Peptide Research

Chromatography is an indispensable analytical tool in peptide studies. Peptides—short chains of amino acids—often need to be isolated from complex mixtures for characterization, quality control, or functional assays. Techniques like high-performance liquid chromatography (HPLC) have proven extremely versatile over decades for peptide purification and analysis across a wide range of sources and sample complexities. By separating peptides based on their chemical properties, chromatography for peptides allows researchers to obtain high-purity samples and detailed analytical data. In modern peptide research, chromatography methods are used both to purify synthetic peptides (removing by-products and ensuring the target peptide’s purity) and to analyze peptide mixtures (such as enzymatic digests or biological extracts) for identification and quantification. This separation capability is crucial – without reliable peptide separation techniques like chromatography, it would be extremely challenging to study specific peptides in the presence of closely related impurities.

Another reason chromatography is used in peptide studies is its compatibility with downstream analytical tools. HPLC, for instance, can be directly coupled with mass spectrometry (LC-MS) for peptide sequencing or post-translational modification analysis, making it a core analytical peptide tool in proteomics. Overall, chromatography matters because it addresses two key needs in peptide research: achieving the required sample purity for functional or structural studies, and providing high-resolution separation for accurate peptide analysis.

What Are High-Pressure and Low-Pressure Chromatography?

High-pressure liquid chromatography (HPLC) – also known as high-performance liquid chromatography – is a technique that forces liquid mobile phase through a densely packed column under high pressure to separate compounds. Modern HPLC systems use powerful pumps to generate pressures typically ranging from a few dozen up to many hundreds of bar (several tens of megapascals). These high pressures push solvent through columns packed with very fine particles (often 3–5 micrometers in analytical HPLC), achieving superior resolving power. HPLC is an advanced, automated form of liquid chromatography with precise flow control, online detectors, and often computer integration. It is considered a gold standard for peptide separation techniques due to its efficiency and reproducibility in separating peptides that may differ by only small changes in structure.

By contrast, low-pressure liquid chromatography (LPLC) refers to chromatographic methods operated at much lower pressures. This category includes traditional open-column chromatography (gravity-driven flow) and medium-pressure systems such as fast protein liquid chromatography (FPLC). LPLC typically uses larger resin particles in broader columns and modest pumping systems (or even just gravity) resulting in pressures often below 5 bar in operation. Because of the lower pressure, LPLC equipment can be made of glass or plastics and is generally simpler. It was historically used for preparative separations where gentle conditions are needed – for example, purifying large biomolecules or when large sample volumes must be processed. In peptide research, LPLC might involve techniques like gravity-flow columns or specialized low-pressure chromatographs to purify peptides using resins for ion exchange, gel filtration, or affinity. Notably, FPLC is a form of LPLC optimized for biomolecules: it uses controlled flow (usually via peristaltic pumps) at low pressure to avoid denaturing sensitive proteins or peptides. LPLC methods tend to have lower resolution than HPLC but allow processing of larger quantities and the collection of fractions for further use.

In summary, high-pressure liquid chromatography uses high pressure to achieve high resolution separations (ideal for analytical applications), whereas low-pressure liquid chromatography operates under milder pressures (often for preparative purposes), each finding distinct roles in peptide workflows.

Key Differences: HPLC vs. LPLC

When comparing HPLC vs. LPLC, several key differences emerge in performance and application:

Pressure and Equipment: HPLC systems are built to withstand very high pressures (50–1000+ bar), using steel tubing and high-pressure pumps. LPLC systems work at much lower pressures (often <5–10 bar) and can use simpler, often plastic or glass components. This difference in operating pressure is fundamental: HPLC’s high pressure enables the use of fine column packing for better separation, while LPLC’s low pressure is gentler on sensitive samples but uses larger particles and lower flow resistance.

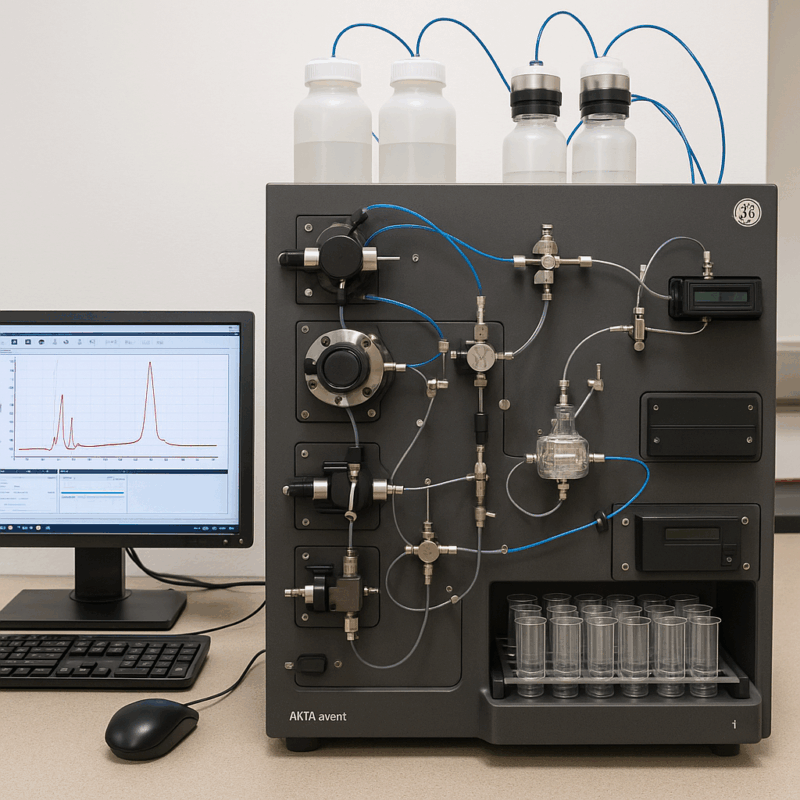

A picture of a low-pressure chromatography machine.

Figure 1: An example of a low-pressure chromatography setup (GE Healthcare ÄKTA Avant FPLC system) used for peptide and protein purification.

Resolution and Efficiency: High-pressure chromatography generally achieves higher resolution separations. HPLC columns use smaller stationary phase particles (typically 2–10 μm), which create more theoretical plates and finer separation of peptide components. The result is the ability to distinguish between very similar peptides or impurities – an important factor in peptide analysis. LPLC, using larger beads, has lower plate counts and thus lower separating power. For example, researchers note that HPLC provides the high-resolution separations required for analytical chemistry, whereas medium/low-pressure methods have inherently lower efficiency.
Sample Capacity and Scalability: LPLC methods excel in scalability. They can handle large sample volumes and are often used in preparative peptide purification (e.g. isolating grams of a peptide from a crude mixture). Columns in LPLC (like in FPLC) can be large and load tens of milliliters or more, and multiple runs can be pooled. HPLC, especially analytical HPLC, typically injects small volumes (often in the microliter to low-milliliter range) and is less suited to very large-scale purifications in one run. While preparative HPLC systems exist (with larger columns and moderate pressures), there is a practical limit to scaling up HPLC due to pressure and equipment constraints. LPLC, on the other hand, is routinely scaled to industrial production (e.g. using large resin columns to purify kilograms of a peptide or protein).
Speed and Throughput: High-pressure systems can often separate compounds faster because the combination of high pressure and small particles allows shorter columns or faster flow without losing resolution. Modern UHPLC (ultra-high-pressure LC) can complete peptide separations in minutes. However, throughput also depends on loading: a single HPLC run might be quick, but if only a small amount can be injected, multiple runs are needed for large samples. LPLC may run at lower linear velocities, but it can often process more sample in one go. In practice, HPLC is preferred for fast analysis of many small samples, whereas LPLC might be used in processes where a single run handles a bulk sample over a longer time.
Solvent and Cost Considerations: HPLC often uses larger volumes of organic solvents (e.g. acetonitrile, methanol in reverse-phase) at high purity grades, and the columns and instrument maintenance can be costly. Low-pressure methods might use more aqueous buffers (especially for ion exchange or affinity), and though they might consume large volumes in scale-up, the solvents are usually cheaper (water, salts) and the equipment costs are lower. One study comparing peptide purification approaches found that a flash-LPLC system consumed less than half the solvent volume and one-sixth the time to purify a peptide batch, compared to preparative HPLC, when handling a large sample load [4]. This underscores that for high-throughput purification of large quantities, low-pressure systems can be more cost- and time-efficient. On the other hand, for routine analytical runs of many samples, HPLC’s speed per run and automation may outweigh its solvent cost.

In essence, HPLC and LPLC differ in performance vs. practicality: HPLC maximizes resolution, speed, and analytical precision, while LPLC emphasizes gentle handling, scalability, and cost-effective bulk separation.

Which Chromatography Method is Right for Your Peptide Study?

Choosing between high-pressure and low-pressure chromatography for peptides comes down to the specific goals and constraints of your study. Ask yourself a few key questions:

Analytical vs. Preparative Goal: If your primary need is peptide analysis – for example, determining peptide identity, purity, or quantity in a sample – HPLC is usually the better choice. High-pressure chromatography provides the resolution and precision for analytical assays and is compatible with detectors like UV and mass spectrometry for detailed characterization. On the other hand, if your goal is to purify a peptide in large amount for later use (e.g. for a therapeutic peptide lead or for functional studies), an LPLC approach might be more practical, especially as an initial step. LPLC techniques (such as using an ion-exchange column on an FPLC system) can quickly handle large volumes to capture or enrich the target peptide, which you can then polish to higher purity by HPLC if needed.

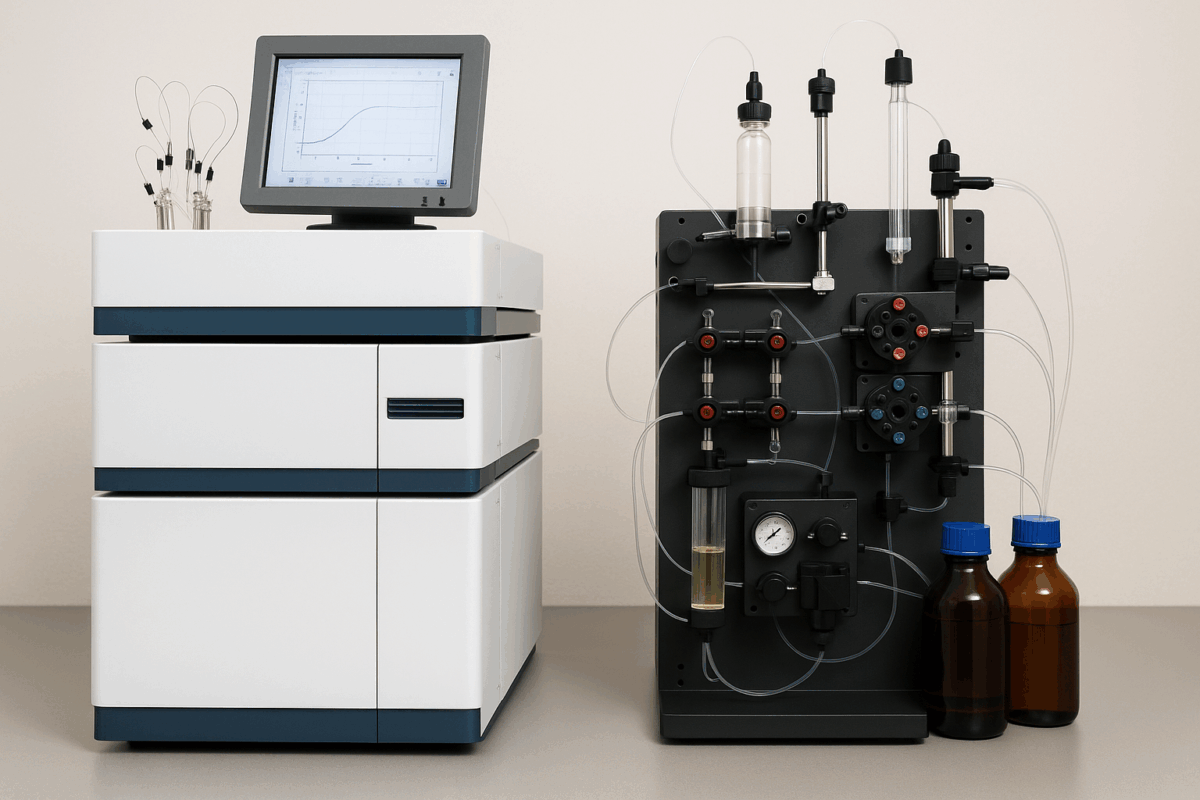

A picture comparing an HPLC machine and a LP machine.

Figure 2: High-Pressure vs. Low-Pressure Chromatography

Sample Size and Purity Requirements: Consider the amount of sample and the required purity. HPLC is ideal for achieving very high purity (e.g. >95–99% pure peptide) but is typically used on smaller scales (analytical HPLC injections are often under 1 mL). If you have only a small amount of peptide sample and need rigorous analysis, HPLC is the clear choice. Conversely, if you have liters of fermentation broth or a large solid-phase synthesis crude containing your peptide, low-pressure methods (like large flash chromatography columns or FPLC) can handle the load better upfront. Many workflows use a combination: chromatography for peptides may start with a low-pressure capture step (which removes bulk impurities) followed by an HPLC step to achieve final high purity. This strategy leverages the strengths of both methods.
Peptide Properties and Sensitivity: The nature of the peptide can influence the method. Most peptides (especially those under ~5 kDa) are robust enough for HPLC conditions (which may involve organic solvents and pressures) – in fact, studies show even proteins often tolerate HPLC’s conditions without damage. However, if a peptide is very large, aggregation-prone, or has a labile structure (perhaps a peptide that tends to form secondary structure or complexes), you might prefer milder conditions initially. Low-pressure liquid chromatography typically operates at ambient or low pressures and often at cooler temperatures, which can be gentler. For example, peptides that are part of larger protein complexes or assemblies might be better handled by LPLC to remain in native-like states. If maintaining biological activity or structure is crucial during purification (as can be the case for some peptide hormones or signaling molecules), an LPLC method (using aqueous buffers and avoiding strong solvents) could be advantageous,
Available Equipment and Throughput: Practical considerations matter too. If your lab has a modern HPLC/UHPLC system and your work mostly involves analyzing peptide samples or doing small-scale purifications, it makes sense to use that. HPLC systems can run many samples per day with automated sequences, which is ideal for high-throughput analytical tasks. In contrast, if your lab is equipped with an ÄKTA or similar low-pressure chromatography system (commonly used for protein/peptide purification), and you need to purify tens to hundreds of milligrams of peptide routinely, that system may be more appropriate. The choice can simply boil down to using the tool best suited and available for the job – often, it’s not an either/or decision but how to integrate both. Many peptide workflows use HPLC for final analytical confirmation and LPLC for initial bulk purification.

Supporting techniques like electrophoresis or affinity steps are integrated as needed to address specific challenges (for example, removing closely related impurities or concentrating very dilute peptide solutions). The combination of these methods enables researchers to obtain peptides in pure, homogeneous form, which is essential for subsequent experiments or product development.

The Role of Sample Purity in Peptide Analysis

Sample purity is a crucial factor in any analytical workflow, and chromatography is the chief means to achieve that purity in peptide research. The accuracy of peptide analysis (such as determining a peptide’s concentration, activity, or structure) depends on how pure the peptide preparation is. Impurities can interfere with analytic measurements or biological assays. Chromatography ensures that a peptide can be examined in isolation from confounding substances. High-pressure chromatography in particular is often used to assess purity – for example, running an analytical HPLC after synthesis to see if the target peptide is >95% pure – as well as to achieve purity by actually removing those impurities.

The choice of HPLC vs. LPLC can influence achievable purity. HPLC’s high resolution means it can separate a peptide from nearly all impurities if conditions are well-optimized. For instance, reversed-phase HPLC can distinguish peptides differing by a single amino acid or subtle chemical modifications, which is why it’s the method of choice for final purification of synthetic peptides. Low-pressure methods might not fully separate such closely related species; you might get a fraction that is enriched for the target peptide but still contains trace by-products. Therefore, when ultimate purity is required for an analytical endpoint (say you want to characterize a peptide’s NMR structure or conduct a precise bioassay), HPLC is usually involved in preparing the sample.

On the other hand, using LPLC in earlier stages can improve overall workflow purity by removing bulk contaminants. For example, if you have a complex mixture from an extraction (like a peptide isolated from a natural product source or cell culture), performing an initial low-pressure ion-exchange or affinity step can clean up the sample significantly – eliminating proteins, DNA, or highly polar impurities that would complicate an HPLC run. This makes the subsequent HPLC step more efficient and effective. Thus, LPLC contributes to purity by handling the “heavy dirt” and HPLC polishes the sample to homogeneity.

It’s also worth noting that sometimes maintaining purity means avoiding certain methods. If a peptide can form aggregates or is very hydrophobic, an incorrect chromatography approach might cause it to precipitate or stick irreversibly to the column. In such cases, one might adjust the method (e.g. add chaotropic salts in an LPLC or use a different HPLC column chemistry) to preserve the peptide in solution. Ensuring sample purity is not just about removal of other compounds but also keeping the peptide itself in an unaltered, monomeric state. Low-pressure systems, with their gentle flow and often biocompatible buffers, can be advantageous for keeping sensitive peptides intact and pure in a functional sense (e.g., keeping a peptide in a folded state or bound to a metal ion that might be stripped in harsh HPLC solvents).

In summary, chromatography underpins sample purity in peptide work: high-pressure methods excel at delivering ultra-pure peptide fractions needed for rigorous analyses, while low-pressure methods help by clearing bulk impurities and preserving peptide integrity. A strategy that uses both will ensure that by the time you analyze a peptide, the sample is as pure (and as representative of the native peptide) as possible.

Choosing the Right Equipment for Your Peptide Workflow

Selecting the appropriate chromatography equipment is a strategic decision that can affect the efficiency and success of peptide experiments. Modern labs have access to a range of systems, from benchtop HPLC units to modular low-pressure chromatography setups. Here’s how to approach choosing the right equipment:

Match Equipment to Purpose: If your workflow involves frequent analytical peptide tools – such as routine purity checks, peptide mapping, or small-scale separations – investing in a reliable HPLC or UHPLC system is wise. Look for systems with good pump pressure capacity, a UV detector (or even a diode-array detector for more information per run), and possibly autosampler and column oven features if you need high reproducibility. These features ensure accurate retention times and peak integration, which is crucial for method development and quantitative work. On the other hand, if your work primarily involves peptide purification at scale (for example, producing milligrams to grams of peptide for in vivo studies or formulations), an FPLC or flash chromatography system might be more suitable. Such low-pressure liquid chromatography systems (e.g., GE ÄKTA series or Bio-Rad NGC systems) come with multiple interchangeable columns, fraction collectors, and often software that can automate complex gradients and multi-step sequences. They are designed to be flexible and handle larger volumes. In many cases, laboratories will have both: use the HPLC for analysis/QA and the LPLC equipment for production/purification steps.

Column and Media Considerations: The choice of equipment goes hand in hand with column chemistry. For peptide work, reversed-phase HPLC columns (C18, C8, etc.) are a staple for analytical separation. Ensure your HPLC can accommodate the column dimensions you need (analytical 4.6 mm ID columns for standard work, or maybe semi-preparative 10 mm ID columns if you plan to do some purification on it). Also consider if you need specialized detectors – for example, if your peptides lack UV chromophores (some very short peptides or unusual modifications), you might need an HPLC with a mass spectrometer or an evaporative light-scattering detector. With LPLC equipment, think about the types of resins you will use (ion exchange, size exclusion, affinity, etc.) and make sure the system’s pressure/flow capabilities cover those needs. Some low-pressure systems have limits on flow rate or pressure (for instance, an ÄKTA Start system is limited to ~0.5 MPa and certain flow rates). If you plan to use a gel filtration column that requires higher pressure, you’d need a more advanced model. Therefore, outline the chromatographic techniques (modes) in your peptide workflow and choose equipment that can handle them all.

Scalability and Future Needs: It’s prudent to choose equipment not just for what you are doing now but what you might need in the foreseeable future. If peptide projects are growing in scale, you might opt for an HPLC that has both analytical and semi-prep capabilities (some systems can do both by simply switching to a larger loop and column). Similarly, in low-pressure systems, modular ones that can be upgraded with extra pumps or detectors give flexibility as projects evolve. Cost is also a factor – HPLC systems can be expensive, but there are modular and even used systems that can be cost-effective for academic labs. LPLC systems vary widely in price depending on features; a simple peristaltic pump setup with manual valves is much cheaper than a fully automated multi-module FPLC. Consider the training and comfort of personnel: HPLC requires understanding of more parameters (e.g., pressure limits, solvent mixing, degassing), while LPLC systems are often designed to be user-friendly for those purifying proteins/peptides without deep chromatography expertise.

In conclusion, choosing the right chromatography equipment comes down to aligning with your peptide workflow demands. Many labs find that an HPLC system is indispensable for accurate, high-resolution analysis and final purification steps, whereas an LPLC system is ideal for routine preparative tasks and initial purification under gentle conditions. By having both or selecting a hybrid approach, researchers ensure they are equipped to handle both the “analytical” and “production” sides of peptide research. The ultimate aim is to have the capability to quickly obtain pure peptides and detailed data – and the proper chromatography setup is key to achieving that goal in an efficient and reproducible way.

Frequently asked questions (FAQs) about High- vs. Low-Pressure Chromatography

What are the pros and cons of HPLC vs. LPLC for peptide studies?

High-Performance Liquid Chromatography (HPLC) offers higher resolution, faster run times, and better sensitivity, making it ideal for analytical and preparative peptide work. However, it is more expensive and requires specialized high-pressure equipment.
Low-Pressure Liquid Chromatography (LPLC) is more accessible and cost-effective for bulk purification and preliminary separation steps but provides lower resolution and slower processing speeds. It’s typically used when ultra-high purity is not required or for early-stage workflows.

How does pressure level impact peptide purification results?

The pressure level directly affects the flow rate, resolution, and separation efficiency. Higher pressure in HPLC systems enables the use of smaller particle sizes in column media, which enhances separation performance and resolution. Lower pressure systems (LPLC) operate with larger particles, resulting in broader peaks and lower resolving power. Thus, HPLC is preferred when fine separation between closely related peptides is necessary.

Why is chromatography essential in peptide research?

Chromatography enables the separation, identification, and purification of complex peptide mixtures. It is essential for verifying peptide identity, assessing purity, removing synthesis by-products, and preparing samples for downstream applications such as mass spectrometry or biological assays. Without chromatographic separation, distinguishing structurally similar peptides would be challenging, compromising the accuracy of analytical results.

Which chromatography technique yields higher resolution?

HPLC yields significantly higher resolution compared to LPLC. The use of high-pressure pumps and fine stationary phases allows HPLC to separate peptides with small differences in hydrophobicity, charge, or molecular weight. This makes HPLC particularly well-suited for purifying peptides that differ by only a single amino acid or post-translational modification.

What equipment is recommended for peptide separation using chromatography?

For HPLC, a robust system such as the Agilent 1260 Infinity or Waters Alliance series is recommended, paired with reverse-phase C18 columns for most peptide applications. For LPLC, systems like the GE ÄKTA series (e.g., ÄKTA Start or ÄKTA Pure) are commonly used, especially with ion exchange or size-exclusion columns. Column choice should be guided by the peptide’s size, charge, and hydrophobicity.

References

References

Mant CT, Chen Y, Yan Z, et al. HPLC Analysis and Purification of Peptides. Methods Mol Biol. 2007;386:3-55.
Grainger D. A Tale of Two Chromatographies. Biocompare Editorial Article. March 16, 2017.
Sigma-Aldrich. Liquid Chromatography at Low Pressures (LPLC) – Application Note/Overview.
Sørensen KK, Mishra NK, Paprocki MP, Mehrotra A, Jensen KJ. High-performance reversed-phase flash chromatography purification of peptides and chemically modified insulins. ChemBioChem. 2021;22(7):1197-1203 (as summarized in Biotage application blog)biotage.com
Iovine J. ÄKTA Protein Purification Systems – Which One is Right For You? Arvys Proteins Blog. May 10, 2021arvysproteins.com
