How MALDI Advances Peptide Research and Analysis
Matrix-assisted laser desorption ionization (MALDI) is a groundbreaking soft ionization technique in mass spectrometry that has revolutionized peptide research. Introduced in the late 1980s, MALDI enables rapid mass spectrometry profiling of peptides and proteins with high precision and sensitivity [1]. By providing gentle ionization with minimal fragmentation, MALDI allows scientists to measure intact peptide masses (often as a unique “mass fingerprint”) and has become an indispensable analytical chemistry tool in both academic and biopharma laboratories. Below, we delve into what MALDI is, how it works, and why it is so powerful for peptide research and analysis, including comparisons to electrospray ionization (ESI), best practices for sample preparation, key applications in proteomics/biopharma, common challenges, and emerging trends.
Understanding MALDI: What It Is and How It Works
In MALDI, analyte molecules are mixed with a specialized matrix compound and co-crystallized on a metal target plate. A pulsed laser (typically UV) is then fired at the sample, causing the matrix to absorb the laser energy and undergo rapid laser desorption, carrying the analyte into the gas phase in a microplume. During this desorption/ionization event, the matrix facilitates proton transfer to the peptide molecules, producing charged peptide ions (usually singly protonated in positive mode). These ions are then accelerated into the mass analyzer (often a time-of-flight tube in MALDI-TOF instruments) where they are separated by their mass-to-charge ratio and detected. Because MALDI predominantly generates singly charged ions, the resulting spectra are relatively simple – each peptide appears as a single peak at roughly its molecular weight [1]. This MALDI mass spectrometry process thus allows direct measurement of peptide masses with high accuracy and little fragmentation.
MALDI’s design makes it especially suitable for peptide mass spectrometry. The use of a matrix not only protects fragile biomolecules from being destroyed by the laser (hence “soft” ionization) but also effectively ionizes large peptides and proteins that were previously difficult to analyze by older techniques [1]. MALDI can ionize molecules ranging from small peptides to proteins hundreds of kilodaltons in size. Notably, the technique works on dried, solid samples, which means peptides can be pre-spotted on a target plate and analyzed in an automated, shot-by-shot manner. This attribute underpins MALDI’s speed and throughput advantages (discussed later). In summary, MALDI is a matrix-assisted laser desorption method that made it possible to ionize and measure intact peptides and proteins with ease – a pivotal development that earned its inventors the Nobel Prize in Chemistry in 2002, alongside ESI’s developers.
The Role of MALDI in Modern Peptide Research
MALDI has assumed a central role in modern peptide and protein research. In proteomics, MALDI-TOF mass spectrometry became a workhorse for protein identification through peptide mass fingerprinting [4]. In a typical workflow, a protein is enzymatically digested into peptides, and the mixture is analyzed by MALDI to produce a set of peptide mass peaks (a “fingerprint”). This fingerprint is then matched against databases to identify the protein. Such MALDI-based peptide mapping methods, combined with database search algorithms, transformed how researchers identify proteins from gels and complex mixtures – providing a faster alternative to sequencing every peptide by tandem MS [4]. Over the years, MALDI’s peptide profiling capabilities have been widely adopted for high-throughput proteomic studies, biomarker discovery, and even clinical diagnostics (e.g. microbial identification via protein fingerprints). In fact, along with ESI-MS/MS, MALDI-MS has evolved into one of the major analytical chemistry tools for proteomic analysis [4].

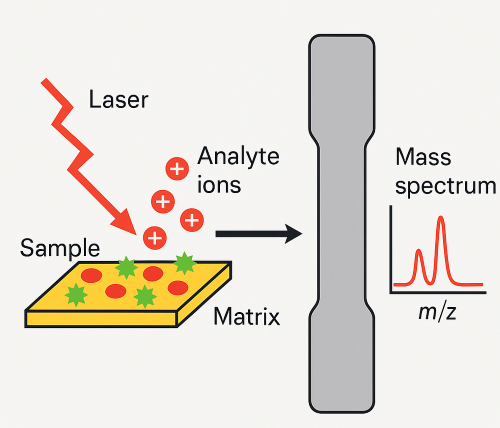

Figure 1: Simplified principle of MALDI mass spectrometry.
Beyond protein identification, MALDI contributes to many facets of peptide research. Its ability to handle large biomolecules and detect small mass shifts makes it ideal for characterizing post-translational modifications or chemical modifications in peptides. Researchers use MALDI-based mass spectrometry to pinpoint peptide modifications such as phosphorylation, glycosylation, or drug conjugates. In the biopharmaceutical arena, for example, MALDI-TOF and MALDI-TOF/TOF instruments are employed to verify the identity and integrity of therapeutic peptides and small proteins. ALDI can rapidly confirm a synthetic peptide’s molecular weight for quality control, or detect whether a protein drug has undergone oxidation, glycation, or other covalent changes. Additionally, MALDI’s tolerance for complex matrices allows it to analyze peptides in biological samples with minimal cleanup – a big advantage in peptide research involving bodily fluids or cell extracts. In summary, MALDI underpins modern peptide research by enabling quick mass measurements for identification and characterization, complementing the sequence detail obtainable by ESI tandem MS. Its role spans from fundamental proteomic analyses to applied biopharma peptide research, where speed and accuracy are paramount.
MALDI vs. ESI: Choosing the Right Ionization Technique
MALDI and electrospray ionization (ESI) are both soft ionization techniques used in mass spectrometry, but they differ significantly in mechanism and optimal use-cases. Sample state: MALDI operates on dry, solid samples co-crystallized with a matrix on a target plate, whereas ESI ionizes peptides from solution (a liquid spray). Consequently, MALDI is a pulsed ionization (one laser shot = one packet of ions) ideal for automated spot analysis, while ESI provides a continuous stream of ions compatible with online liquid separation (e.g., LC–MS). Charge state: MALDI predominantly produces singly charged ions, yielding simpler spectra as mentioned earlier, whereas ESI generates multiply charged ions (peptides may carry +2, +3, +4, etc.) The multiple charging in ESI extends the accessible mass range (even very large proteins can be detected at lower m/z by distributing charge) and enhances fragmentation for MS/MS, but it also makes spectra more complex. MALDI’s singly charged ions make it easy to read molecular weights directly, but extremely large proteins may be harder to analyze due to their high m/z (since a 100 kDa protein in MALDI appears at ~100 kDa m/z, often near instrument limits).

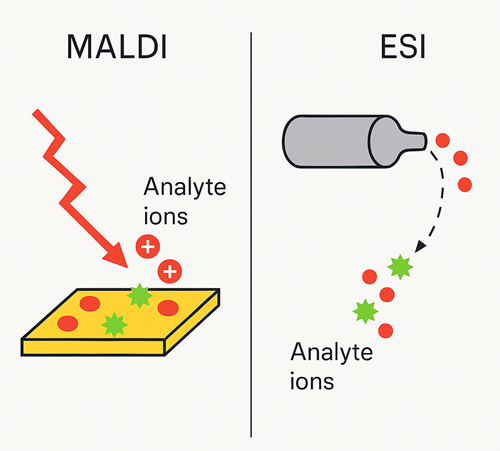

Figure 2: Comparison of MALDI vs. ESI ionization processes
Performance and workflow: Neither MALDI nor ESI is categorically “better” – each excels in different scenarios, so the choice of ionization technique depends on the application [7]. MALDI is renowned for its speed and throughput; a MALDI-TOF can rapidly acquire spectra from many samples with minimal carryover, making it ideal for high-throughput screening assays, quick protein identifications by peptide mass fingerprinting, and imaging MS experiments. It also tolerates some impurities and doesn’t necessarily require upfront separation. In contrast, ESI shines in comprehensive analysis when coupled to chromatography: ESI-MS/MS is the backbone of most shotgun proteomics workflows, where peptides are separated by LC and sequenced in real time by tandem MS. ESI’s continuous ionization and multiple charges are advantageous for in-depth peptide sequencing and quantitation in complex mixtures [6].
As a trade-off, ESI analysis is slower per sample and more sensitive to sample clean-up (salts or contaminants can suppress the spray). In practice, many laboratories use both: MALDI-TOF for rapid “mass fingerprint” profiling or targeted assays, and ESI–MS/MS for discovery-based proteomics or when richer structural information is needed [6]. Indeed, MALDI and ESI are often viewed as complementary technologies – a “twin-star” combination of ionization techniques that together cover a broad range of analytical needs [7]. When choosing one over the other, factors like sample type (solid vs liquid), required throughput, availability of LC, and the need for fragmentation information guide the decision.
Supporting techniques like electrophoresis or affinity steps are integrated as needed to address specific challenges (for example, removing closely related impurities or concentrating very dilute peptide solutions). The combination of these methods enables researchers to obtain peptides in pure, homogeneous form, which is essential for subsequent experiments or product development.
Application Spotlight: MALDI in Proteomics and Biopharma
MALDI in Proteomics – MALDI-TOF mass spectrometers have become staples in proteomics laboratories for the identification and characterization of proteins. One prominent application is peptide mass fingerprinting as mentioned earlier: after enzymatic digestion of a protein, a MALDI spectrum of the peptide mixture provides a “fingerprint” that can identify the protein by database matching. This approach was instrumental in early proteomics and is still used for rapidly identifying proteins from 2D gels or SDS-PAGE spots. MALDI-TOF/TOF instruments (which can perform tandem MS on selected peaks) further extend proteomic capabilities by allowing peptide sequencing when needed – for example, determining amino acid sequence or confirming post-translational modification sites on peptides.
In addition, MALDI has been applied to protein sequencing through techniques like in-source decay (MALDI-ISD) and by combining with high-resolution analyzers, demonstrating that even partial sequence information can be obtained from intact proteins. Another burgeoning area is MALDI imaging mass spectrometry (MALDI-MSI) in proteomics, where tissue sections are analyzed by MALDI to map the spatial distribution of peptides and proteins. This technique is being used to discover disease-related protein patterns directly from tissue – a frontier of proteomic research leveraging MALDI’s unique strengths. Notably, MALDI’s speed and ease of use also make it a practical tool in core labs and clinical proteomics; for instance, MALDI-TOF platforms (such as the Bruker Biotyper) are widely used in clinical microbiology to identify bacteria via protein/peptide profiles, performing thousands of analyses per day in hospital labs.
MALDI in Biopharma – The pharmaceutical and biotech industries have embraced MALDI mass spectrometry for both R&D and quality control of peptide therapeutics. A key utility of MALDI is in fast QC checks: a synthetic peptide’s molecular weight can be confirmed in seconds by MALDI-TOF, ensuring the correct product was made (or checking purity by looking for by-product peaks). Many biopharma labs use MALDI for routine analysis of peptides, small proteins, and even antibody fragments to verify identity and detect any modifications. MALDI is particularly useful for detecting covalent modifications in protein/peptide drugs – for example, identifying if a peptide has oxidized methionine or if a protein has glycation, by observing the mass shifts. Research studies have used MALDI-TOF/TOF to characterize interactions between protein drugs and excipients or polymers in formulations, taking advantage of MALDI’s ability to handle large molecules and mixtures. In drug discovery, MALDI is accelerating high-throughput screening of peptide libraries.
A notable recent advance by Merck & Co. demonstrated an automated MALDI-MS platform for peptide metabolic stability screening, where 384 peptide samples (from a library of drug candidates) were analyzed in <1 hour to measure how quickly each peptide is degraded. This MALDI-based workflow dramatically improved throughput and reduced solvent waste compared to traditional LC–MS assays, highlighting MALDI’s value in speeding up drug development. MALDI is also employed in biopharma for confirming protein identity in different stages of production, for example, using intact mass analysis to verify a monoclonal antibody’s mass or to quickly profile protein digests for mapping disulfide bonds. Overall, MALDI’s precision, sensitivity, and speed make it a powerful asset in proteomic research and biopharma applications alike – from identifying proteins in a research lab to rapidly screening therapeutic peptides in an industrial setting.
Challenges in MALDI-Based Analysis—and How to Overcome Them
While MALDI is a powerful technique, it comes with certain challenges and limitations. Being aware of these and implementing strategies to overcome them is important for reliable MALDI peptide analysis:
- Matrix Background and Low-Mass Interference: The organic matrix, essential for MALDI, can produce its own set of ions (particularly below m/z ~500–1000) that may obscure signals from very small peptides or metabolites. This “matrix noise” makes MALDI less suitable for detecting small molecules in the low mass range. Solution: Choose an appropriate matrix and possibly specialized solvents – for instance, using a softer matrix like DHB for small peptides, or new matrix compounds that have fewer low-mass peaks. Additionally, thorough recrystallization of matrix or using high-purity matrix can reduce impurities that contribute to background. In many cases, one simply accepts a cut-off (e.g. ignoring signals below m/z 500). For specific low-mass targets, alternative techniques (ESI or MALDI matrices designed for small molecules) might be necessary.
- Reproducibility and “Sweet Spot” Effects: As mentioned, MALDI can suffer from spot-to-spot and shot-to-shot variability. Crystal inhomogeneity means two spots of the same sample may yield different signal intensities, and even within one spot, moving the laser can find a “sweet spot” of high signal or a barren spot. This variability complicates quantitative analysis – MALDI is typically not as quantitative as ESI unless careful steps are taken. Solution: To improve reproducibility, mix samples with an internal standard so that any fluctuation in laser shot intensity or matrix concentration affects both analyte and standard equally, allowing ratio-based quantitation. Ensuring uniform sample prep (as discussed in best practices) is crucial – e.g. finely ground matrix, well-mixed solutions, homogeneous application. Some labs employ robotic spotters or acoustic droplet ejection to place very consistent spots. Averaging a large number of laser shots across the spot also smooths out micro-scale inconsistencies. If absolute quantitation is required, one approach is to calibrate MALDI results against known concentrations or use standard addition.
- Ionization Bias and Limited Fragmentation: MALDI’s ionization can be biased by co-crystallization; certain peptides ionize more efficiently (“fly” better) than others in a mixture, which might cause weaker signals for some components due to suppression. Also, MALDI generally yields singly charged ions, which means each peptide produces one peak but also that performing MS/MS on those singly charged ions (especially large ones) can be less informative compared to ESI multi-charged ions. Solution: Dilute complex mixtures to mitigate competition for charge, or separate samples (e.g. do a prior LC step) to reduce suppression between components. For getting sequence information, newer MALDI instruments (TOF/TOF, or MALDI coupled to orbitraps or ion traps) can be used to fragment peptides; techniques like LIFT-TOF/TOF, PSD (post-source decay), and in-source decay can provide structural data. However, if MALDI fails to adequately ionize certain peptides or provide needed MS/MS data, a practical workaround is to switch those samples to an ESI–MS/MS system. In many studies, MALDI and ESI are used in tandem – MALDI provides a quick profile, and any gaps or tough cases are followed up by ESI for deeper analysis.
- Sample Contaminants (Salt and Impurities): Although MALDI is more tolerant of salts than ESI, high salt or buffer concentrations (e.g. >10 mM) can still severely suppress MALDI signals. Likewise, contaminants like detergents or polymers in the sample can crystallize poorly or dominate the spectrum. Solution: Simple steps like desalting peptide samples (using C18 ZipTips or gel filtration) before mixing with matrix can dramatically improve spectra. If a sample must have salts (e.g. enzymatic digest in phosphate buffer), you can try adding a crown ether or ammonium citrate to sequester metal salts or use a liquid ionic matrix that is more salt-tolerant. Keeping the sample clean – via purification or using prefractionation – will pay off in MALDI analysis.
- Instrument and Cost Considerations: MALDI-TOF instruments are typically expensive and occupy significant lab space, and historically they were less common than LC-MS systems. Additionally, MALDI requires calibrations and good laser maintenance; the laser itself can age and cause fluctuations. Solution: Regularly calibrate the MALDI-TOF with standard peptides or use automated calibration spots on the target plate to maintain mass accuracy. Many vendors now offer benchtop MALDI-TOF units which are more affordable and user-friendly for routine peptide analysis. Sharing a MALDI instrument as a core facility resource is another way to mitigate cost issues.
In summary, while MALDI has some challenges – matrix-related noise, spot variability, bias in ionization, and sample cleanliness demands – these can often be managed with careful technique and complementary approaches. Understanding these limitations is important, so one can plan experiments (and interpret results) accordingly. When needed, using MALDI in conjunction with other methods (like ESI-MS/MS or different sample prep techniques) can overcome most of these hurdles and ensure robust peptide analysis.
Emerging Trends in MALDI for Advanced Analytical Use
MALDI continues to evolve, and several exciting trends are expanding its capabilities in advanced analytical chemistry and omics research:
- MALDI Mass Spectrometry Imaging (MSI): MALDI-MSI is an emerging trend that combines histology with mass spectrometry, allowing scientists to directly visualize the spatial distribution of peptides, proteins, lipids, and metabolites in tissue sections. Modern MALDI instruments with high-speed lasers and stage automation can produce molecular images with resolutions down to 10–20 µm, and research is pushing towards single-cell resolution imaging. This has huge implications for biomedical research and diagnostics – for example, mapping peptide biomarkers in tumors or studying drug distribution in tissues. Recent advances discussed in 2024/2025 highlight improved sample prep (matrix sublimation techniques, etc.) and integration of machine learning to interpret the complex imaging data. MALDI imaging is moving from a niche technique toward more routine use in pharmacology, pathology, and neuroscience, offering a new dimension of information (spatial localization) that traditional peptide assays lack.
- Ultrahigh-Throughput and Automation: Building on MALDI’s inherently fast analysis, new systems are pushing the limits of throughput. One example is the Bruker rapifleX MALDI PharmaPulse, a system designed for drug discovery that integrates MALDI-TOF with automated sample handling to screen massive libraries. It can perform label-free assays by measuring substrate/product peptides in thousands of wells per day. The rapifleX’s laser repetition rate and software allow ultra-high-throughput screening, combing through million-compound libraries via MALDI in a fraction of the time of conventional methods. Such platforms are gaining interest for peptide drug discovery and proteomics where speed is critical. We can expect MALDI to further integrate with robotic automation – for instance, self-cleaning targets, automated matrix deposition, and real-time data analysis – to create end-to-end high-throughput pipelines.
- Improved Mass Analyzers and Hybrids: Traditional MALDI-TOF has seen upgrades like orthogonal injection, segmented mirrors (for higher resolution), and TOF/TOF for MS/MS. Emerging now are hybrid instruments that combine MALDI with high-resolution analyzers (e.g. MALDI coupled to orbitrap or FT-ICR) and with ion mobility. Trapped ion mobility spectrometry (TIMS) combined with MALDI has been demonstrated to separate isobaric peptides or isomeric species that overlap in m/z. This adds an extra dimension of separation (drift time/collision cross-section) to MALDI, enhancing its analytical power for complex samples. These hybrid systems allow researchers to benefit from MALDI’s sample advantages while achieving resolution and accuracy on par with the best ESI-based instruments. In the coming years, we’ll likely see more MALDI sources mated to orbitrap mass analyzers, enabling high-res analysis of peptides directly from tissue or mixtures without needing LC.
- Quantitative MALDI and New Matrices: Another trend is the development of techniques to improve MALDI’s quantitative performance. This includes novel sample supports (like the microchannel target plates) to eliminate hot spots, and the use of isotopically labeled standards for more accurate quantitation. Researchers are also exploring new matrix formulations and additives that can enhance ionization for certain classes of peptides or minimize unwanted fragmentation (e.g. liquid matrices or nanoparticles as matrices). These advances could extend MALDI to areas like clinical chemistry for quantifying specific peptides in patient samples (an area traditionally dominated by ELISAs and LC-MS). Already, MALDI-TOF is FDA-approved for microbial ID; in the future, we may see MALDI-based assays for measuring hormones, small peptides, or other biomarkers in clinical labs, thanks to improved robustness and quantitation.
- Integration with Other Omics and Tools: Finally, MALDI is being integrated into multi-omics workflows. For example, tissue imaging with MALDI can be combined with subsequent LC-MS/MS on the same tissue extracts to correlate imaging data with protein identifications (a correlative proteomics analysis approach). MALDI is also used in conjunction with genomic and transcriptomic data in studies to provide a more comprehensive picture (spatial proteogenomics). In terms of software, advanced algorithms and machine learning are being applied to MALDI data for pattern recognition – whether it’s identifying spectral patterns for disease diagnosis or automating the interpretation of complex spectra. These trends show that MALDI is not standing still; it’s adapting and finding new niches in the evolving landscape of analytical chemistry tools.
In conclusion, MALDI has come a long way from its inception, profoundly advancing peptide research and analysis. It excels in providing quick, sensitive mass profiling of peptides and proteins, making it a linchpin of proteomic identification and a go-to method for many high-throughput applications. While it has its unique challenges, ongoing innovations continue to expand MALDI’s capabilities, ensuring it remains at the forefront of peptide analysis. Together with complementary techniques like ESI-MS, MALDI empowers scientists to dissect the molecular world of peptides with ever-increasing detail and speed – truly showcasing how matrix-assisted laser desorption ionization advances peptide research and analysis in the modern era.
Frequently asked questions (FAQs) about Peptide Isolation
How does matrix-assisted laser desorption ionization work in peptide studies?
- Matrix-assisted laser desorption ionization (MALDI) is a technique used in mass spectrometry to analyze peptides and proteins. In MALDI, a sample is mixed with a matrix, typically a small organic compound that absorbs laser energy. When the matrix is irradiated by a laser, it transfers energy to the sample, causing desorption and ionization of the peptides without fragmentation. The resulting ions are then analyzed in the mass spectrometer, where their mass-to-charge ratio is measured, providing a detailed profile of the peptide’s molecular weight and sequence.
What makes MALDI a preferred ionization method for mass spectrometry?
MALDI is preferred for peptide analysis because it offers several advantages:
- Soft Ionization: MALDI produces minimal fragmentation, preserving the peptide’s structure, which is crucial for accurate molecular weight determination.
- Speed and Sensitivity: MALDI can analyze complex peptide mixtures quickly and with high sensitivity, making it ideal for high-throughput proteomics.
- Sample Flexibility: It works well with a broad range of sample types, including large biomolecules like proteins and peptides, and is often used in conjunction with other techniques like liquid chromatography for comprehensive analysis.
How do researchers choose between MALDI and ESI?
The decision to use MALDI versus electrospray ionization (ESI) often depends on the specific needs of the experiment:
-
-
MALDI is preferred when analyzing larger peptides or proteins, as it is less prone to ion suppression and can handle samples with a wide molecular weight range. It is also suitable for high-throughput analyses and when analyzing samples that are sensitive to the conditions of electrospray ionization.
-
ESI is favored for smaller peptides or when coupling mass spectrometry with liquid chromatography, as it allows for continuous flow and higher resolution analysis. It is better suited for studying protein conformation and interactions due to its ability to ionize proteins in solution.
-
What are the benefits of MALDI in proteomics and pharmaceutical R&D?
MALDI is especially valuable in proteomics and pharmaceutical research due to its ability to:
- Analyze Complex Samples: It enables the analysis of complex peptide mixtures, helping identify proteins, peptides, and their post-translational modifications in drug development.
- Speed: It provides rapid analysis, which is crucial in high-throughput screening of potential drug candidates and biomarker discovery.
- Minimize Sample Preparation: MALDI’s sample preparation is straightforward, requiring minimal processing and reducing the risk of sample degradation, which is particularly important in pharmaceutical R&D.
What’s the future of MALDI in analytical chemistry?
- The future of MALDI in analytical chemistry looks promising, particularly with advancements in instrument sensitivity, resolution, and data analysis software. Researchers are developing MALDI-based imaging techniques, which allow the direct visualization of peptide distributions in tissue samples. Additionally, MALDI’s integration with emerging technologies like microfluidics and nanotechnology will enhance its applications in both clinical diagnostics and the development of novel therapeutics. Furthermore, improvements in the sensitivity of MALDI will expand its capabilities in proteomics, drug discovery, and biomarker detection, making it a critical tool in analytical chemistry moving forward.
References
- Skočaj M. MALDI Time-of-Flight Mass Spectrometry. Spectra-Physics (Newport) Technical Note. 2025. [Accessed 2025 Jul 29]. spectra-physics.com
- Thiede B, Höhenwarter W, Krah A, et al. Peptide mass fingerprinting. Methods. 2005;35(3):237-247. pubmed.ncbi.nlm.nih.gov
- Yao H, Chen B, Harradine P, et al. Applying automation and high-throughput MALDI mass spectrometry for peptide metabolic stability screening. J Am Soc Mass Spectrom. 2023;34(7):1203-1214. chromatographyonline.com
- Kafka AP, Kleffmann T, Rades T, McDowell A. The application of MALDI TOF MS in biopharmaceutical research. Int J Pharm. 2011;417(1-2):70-82. pubmed.ncbi.nlm.nih.gov
- Ngai YT, Lau D, Mittal P, Hoffmann P. Highlight of recent advances and applications of MALDI mass spectrometry imaging in 2024. Analytical Science Advances. 2025;6(1):75-83. researchgate.net
- Darie-Ion L, Whitham D, Jayathirtha M, et al. Applications of MALDI-MS/MS-based proteomics in biomedical research. Molecules. 2022;27(19):6196. mdpi.com
- Creative Proteomics. Molecular Weight Characterization – Comparison of MALDI and ESI. Knowledge Center Article. 2019 [cited 2025 Jul 29]. creative-proteomics.com
- Mendis L. Applying Your MALDI Matrix Like a Boss. Bitesize Bio. Updated May 14, 2025 [cited 2025 Jul 29]. bitesizebio.com
