How to Optimize an SPE Protocol for Peptide Purification

Author: Dr. Numan S. Date: June 28 2025

Sections:

Optimize SPE Protocols for peptide purification

Understanding the Role of SPE in Peptide Purification

Solid-phase extraction (SPE) is a widely used technique in peptide sample preparation for sample cleanup and enrichment. An SPE protocol in peptide research involves binding peptides onto a solid sorbent, washing away unwanted impurities, and then eluting the purified peptides [1]. This process removes salts and other contaminants that can cause analytical interference (e.g. ion suppression in mass spectrometry), while concentrating peptides into a smaller volume [1]. In proteomic workflows, low-pH reverse-phase SPE has become the most commonly applied method for peptide purification due to its efficiency and simplicityreal.mtak.hu. Importantly, optimizing the SPE steps (rather than relying on one-size-fits-all kits) can markedly improve peptide yield and purity – one study noted ~20–30% more peptide identifications and 30–50% higher peptide recovery after method optimizationreal.mtak.hu. This means a well-tuned SPE protocol directly boosts the success of downstream peptide analysis.

Beyond yield and purity, a tailored SPE protocol enhances analytical reproducibility. By consistently removing variable background contaminants and handling samples uniformly, SPE helps ensure that experimental differences reflect true biological variation rather than prep artifacts. In other words, a reproducible SPE protocol allows researchers to confidently attribute data differences to the sample, not the sample prep method. Thus, understanding and optimizing the role of SPE in peptide purification is key to achieving high-quality, reliable results in peptide research.

Key Factors That Influence SPE Protocol Efficiency

Multiple factors determine the efficiency of a peptide SPE protocol. Sample pretreatment and loading conditions are critical – the pH, solvent composition, and presence of ion-pairing reagents in the loading buffer dramatically affect peptide retention. For example, peptides are weakly acidic or basic; using an acidic loading buffer (pH ~2–3, often with 0.1% trifluoroacetic acid) protonates most peptides, enhancing their hydrophobic interaction with a C18 SPE sorbentreal.mtak.hu. Likewise, the organic solvent content during loading should be kept low (typically <5–10% acetonitrile) to promote strong binding; a higher percentage can cause peptides to elute prematurely in the flow-throughreal.mtak.hu. The SPE sorbent’s capacity relative to sample load is another factor – overloading the cartridge can lead to breakthrough of peptides. Using a sorbent amount appropriate for the peptide quantity (or diluting a highly concentrated digest) will ensure all peptides have binding sites.

Washing and elution conditions also require careful optimization. The wash solvent must be strong enough to remove impurities (buffers, detergents, non-peptide matrix) but not so strong that it begins to elute the target peptides. For instance, using too high an organic percentage or too many wash steps can strip off weakly bound peptidesreal.mtak.hu. Generally, a gentle aqueous wash (with a very low organic content and the same pH/ion-pair as the load buffer) is used to rinse away polar interferents. Finally, peptide elution is driven by a high-strength solvent that disrupts the peptide-sorbent interactions. A typical elution solvent for reverse-phase SPE is 50–80% acetonitrile with 0.1% TFA (or a similar acid), delivered in one or more aliquots. Both the solvent strength and the volume/number of elution steps will influence recovery – using multiple smaller elutions can recover more peptide than a single large volume, as discussed laterreal.mtak.hu. In summary, optimizing buffer composition (pH, % organic, ion-pair), sorbent capacity, wash stringency, and elution solvent conditions in concert is essential to maximize SPE efficiency.

Choosing the Right SPE Sorbent for Peptides

Selecting an appropriate SPE sorbent (stationary phase) is crucial for peptide purification. Most peptide SPE protocols use a reversed-phase SPE sorbent, such as C18-bonded silica, which retains peptides via hydrophobic interactions with their non-polar amino acid regions [4]. C18 is a versatile choice that works well for the majority of peptide mixtures, especially moderately hydrophobic tryptic peptides. However, certain peptide classes may require alternative sorbents. Ion-exchange SPE phases (e.g. strong cation exchange) bind peptides by charge and can be useful if a sample contains very polar peptides that hardly interact with C18. For example, highly acidic or hydrophilic peptides might elute in the C18 flow-through but could be captured on a cation-exchange cartridge at low pH.

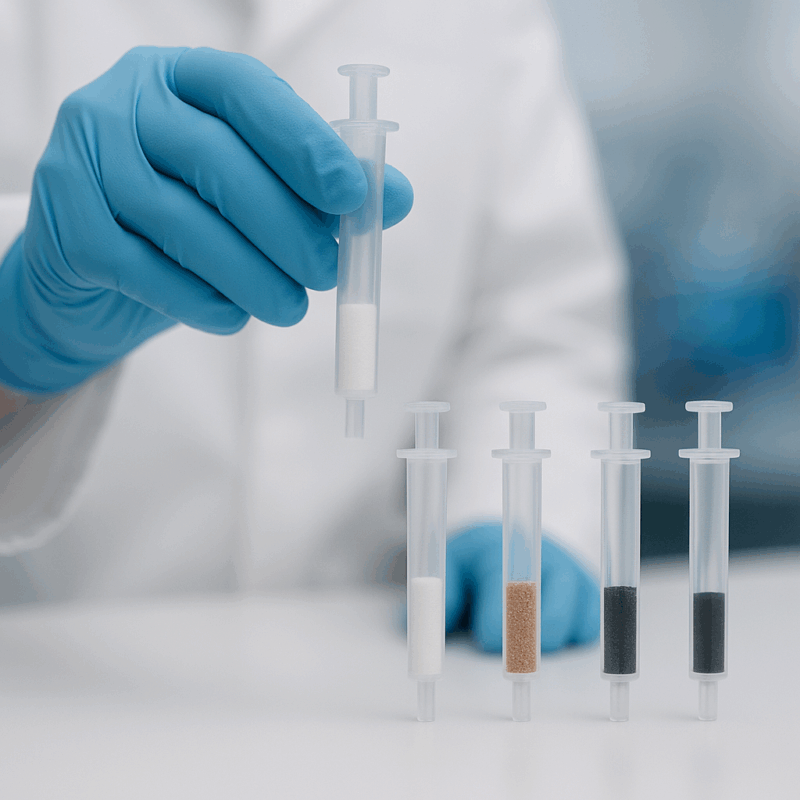

Figure 1: SPE Stationary Phase

Similarly, polar or specialty sorbents like porous graphitized carbon (PGC) or HILIC can enrich peptides that have polar post-translational modifications (such as glycosylation). PGC retains glycopeptides through polar and planar interactions with the graphite surface, and HILIC columns retain very hydrophilic peptides via hydrogen-bonding and dipole interactions [4]. These are often chosen for specific applications (e.g. glycopeptide or phosphopeptide enrichment) where standard C18 might fail to retain the targets.An emerging strategy is to use mixed-mode SPE sorbents, which combine reversed-phase and ion-exchange functionalities in one material. For instance, polymeric mixed-mode cartridges (like Oasis® MCX, which has a C18-like hydrocarbon backbone plus sulfonic acid groups) can interact with peptides both hydrophobically and ionically.

The advantage of mixed-mode SPE is a broader retention of peptides: even very polar, charged peptides that would not stick to a purely hydrophobic sorbent can be retained by the ion-exchange component [5]. In fact, some commercial peptide SPE kits are built on mixed-mode microelution plates to ensure maximal recovery of diverse peptides. When choosing an SPE cartridge for peptides, consider the properties of your peptides (length, hydrophobicity, isoelectric point, modifications). A “like attracts like” principle applies: use C18 or C8 reversed-phase for typical hydrophobic peptide mixtures, but if your peptides are extremely hydrophilic or highly charged, a mixed-mode or specialty phase may yield better recoveryreal.mtak.hu. In short, matching the SPE sorbent chemistry to the peptide characteristics is key to efficient purification.

Step-by-Step: Designing a Reproducible SPE Protocol

Developing a robust SPE protocol involves a series of steps executed in a reproducible manner. Below is a step-by-step outline for a typical reverse-phase SPE procedure, which can be adapted to different cartridge types:

Condition the sorbent: Activate the SPE cartridge with a strong solvent to wet and prep the stationary phase. For reverse-phase SPE, this usually means flushing the sorbent with a few milliliters of a high-organic solvent (e.g. methanol or acetonitrile) containing 0.1% acid. This step removes any impurities and primes the sorbent’s functional groups for interaction.
Equilibrate with aqueous buffer: Rinse the cartridge with water or a weak aqueous buffer (0.1% TFA in water, for example) to establish a starting environment similar to the sample. Equilibration ensures the sorbent is not overly solvated with organic solvent and that its surface is ready to bind peptides under the same conditions as the sample solution. The cartridge should remain wet (do not let it dry out) after this step.

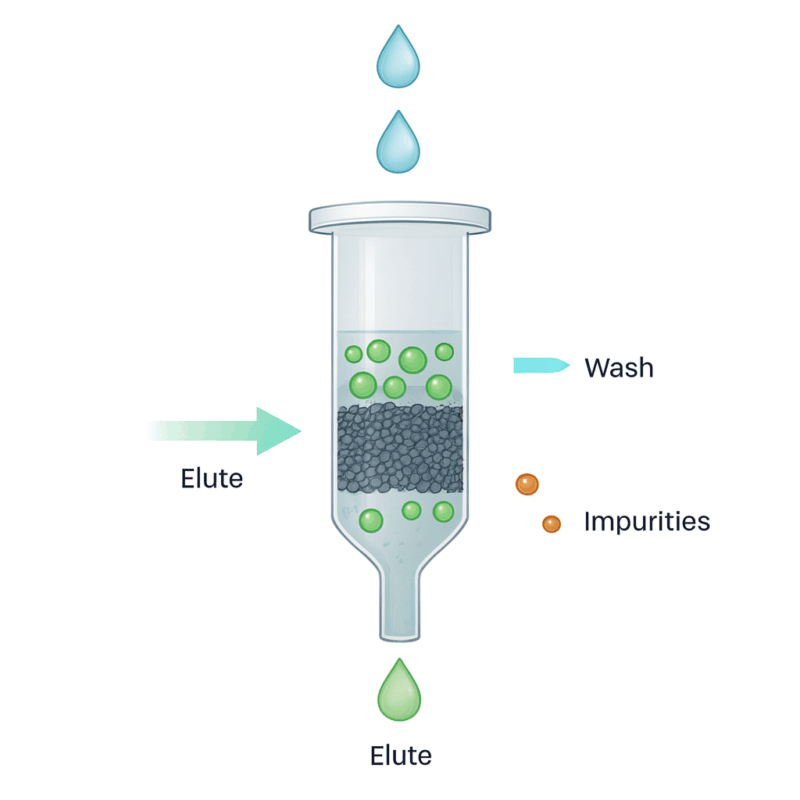

Figure 2: Overview of a solid-phase extraction workflow for peptide samples.

Load the peptide sample: Sample pretreatment is important here – acidify the peptide sample (e.g. add TFA to 0.1% if not already acidified) and dilute it in water or a very weak solvent (typically <5% acetonitrile) to promote binding. Then slowly load the sample onto the SPE cartridge. Peptides will stick to the sorbent, while most non-peptide solutes and very hydrophilic components flow through. It’s often recommended to load via gravity or a low vacuum to give peptides sufficient contact time with the sorbent. If the sample volume is large, it can be loaded in portions; ensure the flow rate is not so fast that binding equilibrium is not achieved.
Wash away impurities: Rinse the sorbent with a mild wash solution to remove salts, buffers, and weakly bound impurities (sample cleanup). For example, a wash of 0.1% TFA in 5% acetonitrile (or even 100% water + 0.1% TFA) is commonly used for peptide SPE. This low-strength wash preserves peptide binding while flushing out hydrophilic contaminants. Avoid high organic percentages or excessive wash volume, as these could start eluting the peptides prematurely. Usually one or two small wash fractions are collected and discarded. After washing, the sorbent should have peptides bound but be free of most interfering substances.
Elute the peptides: Perform peptide elution by applying a strong solvent that disrupts the peptide-sorbent interactions. A typical elution solvent is 50–80% acetonitrile with 0.1% TFA (or formic acid), which will desorb the peptides into the solution. Add the elution solvent to the cartridge and allow it to soak the sorbent for a brief period (30 seconds to a minute) to maximize contact, then collect the eluate. Often, two sequential elutions (for example, 1 mL each) are done to ensure all peptides are recovered. The eluate now contains the purified peptides in a form ready for analysis (if necessary, this solution can be dried and reconstituted, but using a microelution format or small volumes can eliminate the need for evaporation).

Following these steps consistently for every sample will yield a reproducible SPE protocol. Be sure to label fractions (load flow-through, wash, elution) during method development so you can check where peptides are going and adjust the steps if needed. Each step – condition, equilibrate, load, wash, and elute – plays a distinct role in achieving high peptide recovery and purity.

Tips for Maximizing Recovery and Reducing Peptide Loss

To further improve peptide recovery, consider these optimization tips and best practices:

Use adequate ion-pair reagents in the load buffer: Ion-pairing agents like TFA play a dual role – they acidify the solution and form ion-pairs with peptides, increasing their hydrophobicity. Using too little TFA can lead to incomplete pairing (some peptides remain too polar and elute)real.mtak.hu. Ensure ~0.1% TFA is present in loading and wash solvents; for very challenging peptides, a stronger ion-pair (or slightly higher concentration, e.g. 0.5% TFA or use of heptafluorobutyric acid) can boost retentionreal.mtak.hu. Just be aware that very high TFA can suppress electrospray MS signal, so balance retention needs with downstream detection.
Control temperature during SPE: Binding to a hydrophobic SPE phase is often more efficient at cooler temperatures, while elution can benefit from warmth. Performing the loading step at a lower temperature (e.g. ~4–10 °C, or by chilling the sample/cartridge on ice) can improve peptide binding affinity to the sorbentreal.mtak.hu. Conversely, heating the elution solvent (to ~40 °C, if the cartridge tolerates it) or the SPE device can help recover very hydrophobic peptides by giving them more energy to desorbreal.mtak.hu. Temperature control is not always necessary, but it can be a useful lever for maximizing recovery – especially in quantitative assays where every last peptide counts.
Elute in multiple small fractions rather than one big fraction: Instead of a single large-volume elution, use multiple smaller-volume elutions to recover peptides. For example, three 0.5 mL elutions will generally yield a higher total recovery than one 1.5 mL elutionreal.mtak.hu. The first aliquot releases the bulk of peptides, and subsequent aliquots can capture those that remained bound. This approach also minimizes dilution of the peptide sample. As a bonus, if you’ll dry down the combined eluates, having less total volume helps reduce losses on vessel surfacesreal.mtak.hu.
Adjust elution solvent to disrupt all interactions: If you suspect some peptides are still not eluting, modify the elution conditions. For reverse-phase SPE, ensure the organic content is high enough (you may increase acetonitrile to 90–100% or add 10–20% isopropanol for very hydrophobic peptides). For mixed-mode or ion-exchange SPE, elute with or followed by a solution that breaks ionic bonds (e.g. 50 mM ammonium hydroxide or a salt solution, if compatible with your analysis). Also consider using a weaker acid in the elution solvent. Trifluoroacetic acid tends to ion-pair and stick to C18; switching to a less hydrophobic acid like formic acid in the eluent can facilitate complete peptide elutionreal.mtak.hu. Essentially, ensure that your elution solvent negates all the binding forces that held the peptides during loading.
Minimize post-elution losses: Peptides can be lost after SPE if not handled carefully. Avoid lengthy evaporation steps when possible – drying down large volumes can lead to peptides adsorbing to the container walls or degrading. If you must evaporate, use low-binding tubes/vials and consider adding a carrier protein or polyol to protect peptides. An alternative strategy is to use SPE formats that elute in very small volumes (≤50 µL), so you can often skip drying and directly inject the peptide solutionreal.mtak.hu. Finally, always use protein low-bind tubes and pipette tips for collecting and handling peptide solutions; this simple step prevents peptides from sticking to plastic and improves overall recovery.

Implementing these tips will help squeeze the maximum peptide recovery out of your SPE protocol. Optimizing each micro-step – from buffer additives and temperature, to elution technique and sample handling – cumulatively ensures that very little peptide is lost in the purification process.

Comparing C18 vs. Mixed-Mode SPE for Peptide Applications

Impact of SPE sorbent choice on peptide recovery. In this study, a C18 reversed-phase cartridge retained and eluted far more of a target peptide than a hydrophilic (HILIC) sorbent, which failed to capture the peptide (nearly all of it appeared in the wash).** These results highlight how selecting the appropriate SPE media can dramatically affect peptide purification outcomes.*

Conventional C18 SPE and mixed-mode SPE offer different advantages, and understanding their differences is important when optimizing protocols. A C18 SPE cartridge uses a single-mode (hydrophobic) interaction: peptides bind if they have sufficient non-polar character, and very polar peptides may not be retained. In contrast, a mixed-mode SPE cartridge contains both hydrophobic and ion-exchange functional groups, enabling two mechanisms of retention. For example, Oasis MCX is a mixed-mode sorbent with C18-like ligands and a sulfonic acid moiety; it can retain peptides via hydrophobic adsorption and by attracting positively charged amino groups [5]. The practical impact is that mixed-mode SPE can capture a broader range of peptide chemistries. In one application, a mixed-mode cation-exchange SPE plate was able to trap even highly polar tryptic peptides (which have multiple charged sites) with high efficiency, whereas those peptides would have had poor retention on a purely reverse-phase sorbent [5]. Mixed-mode SPE is therefore particularly useful for peptide mixtures that include very hydrophilic or charged peptides that would otherwise be lost. Indeed, peptide scientists often turn to mixed-mode SPE or specially tailored sorbents when standard C18 cartridges are “letting go” of certain peptides of interestreal.mtak.hu.

On the other hand, C18 SPE remains a workhorse for many peptide purification tasks because it is simple, well-characterized, and sufficient for peptides of intermediate hydrophobicity. C18 cartridges generally give excellent recovery for typical tryptic peptides (which usually have a balance of polar and hydrophobic residues). They also tend to elute peptides in a form directly compatible with LC-MS (TFA or formic acid in the solvent). Mixed-mode SPE may require a slightly more complex elution strategy – for example, after eluting with high organic, one might need an extra wash with basic solution to strip off any ion-exchange-bound peptides. This adds a step, but it can be worth it for maximal recovery. When comparing C18 vs. mixed-mode for a given application, consider the peptide properties: if you suspect some peptides are not retained by C18 (e.g. very small, acidic peptides or highly hydrophilic peptides), a mixed-mode approach could markedly increase overall recovery. Mixed-mode sorbents can also improve sample cleanup by binding matrix interferences through multiple interactions, potentially increasing specificity. In summary, C18 SPE is robust for general peptide purification, but mixed-mode SPE provides a wider safety net for capturing peptides with extreme properties. The choice may come down to the requirements of your experiment – if you need to maximize recovery of all peptide species (for instance in a comprehensive peptide library or a low-abundance peptide assay), mixed-mode SPE might outperform C18 alone, whereas for routine purification of synthetic peptides a C18 cartridge is often sufficient and more straightforward to use.

When to Validate and Standardize Your SPE Workflow

Developing an optimized SPE protocol is only part of the process – validation and standardization are crucial to ensure the method performs reliably over time and across different samples. You should validate your SPE protocol once it’s optimized, and also whenever there is a significant change (new sorbent lot or type, a different sample matrix, etc.). Key validation parameters include peptide recovery, purity, and reproducibility. In practice, this means you might spike a known quantity of a test peptide (or peptide mixture) into your sample, run the SPE, and measure how much is recovered, confirming that the recovery is consistent (within accepted variability) from run to run. It’s also wise to examine whether the SPE step biases the types of peptides recovered – for example, are very hydrophobic peptides being consistently retained or lost? In proteomics, researchers recommend assessing the chemical diversity of peptides before and after SPE to ensure your protocol isn’t unintentionally excluding certain classesreal.mtak.hu. At minimum, perform replicate SPE runs on the same sample and verify that the results (peptide yields, identifications, etc.) are reproducible.

Analytical reproducibility greatly benefits from a standardized SPE workflow. Once validated, the SPE protocol should be documented in detail and followed strictly for all samples. Consistent timing (e.g. not letting a cartridge dry out longer in one run than another), consistent volumes, and consistent solvent preparation will reduce variability. If working in a regulated environment (such as peptide drug development or clinical bioanalysis), you may need to formally validate the SPE method according to industry guidelines (for example, following FDA bioanalytical method validation guidance)real.mtak.hu. This involves demonstrating accuracy, precision, linearity, and stability for the peptide analytes through the SPE process. In less formal research settings, a fit-for-purpose validation suffices – ensure the SPE yields do not drift and that any new user can obtain the same results following the protocol. Ultimately, a well-standardized SPE protocol will produce consistent peptide purification performance. This means you can trust that any variation in your experimental results is coming from the biology of the samples rather than the vagaries of sample prep. Investing time in validation and standardization pays off in robust, reproducible data when it comes to peptide purification workflows.

Frequently asked questions (FAQs) about Peptide Separation

What is the most effective method for separating peptides in solution?

Reversed-phase high-performance liquid chromatography (RP-HPLC) is widely considered the most effective and versatile technique for separating peptides in solution. It offers high resolution, reproducibility, and compatibility with a wide range of peptide sizes and polarities. By utilizing hydrophobic interactions between peptide analytes and the stationary phase, RP-HPLC enables precise fractionation, especially when combined with gradient elution and temperature control.

How does reversed-phase HPLC enhance peptide resolution?

Reversed-phase HPLC enhances peptide resolution by exploiting differences in hydrophobicity among peptide chains. The stationary phase—typically composed of C18 or C8 alkyl chains bonded to silica—interacts selectively with hydrophobic regions of peptides. A gradient of increasing organic solvent (e.g., acetonitrile with an acid modifier like TFA or formic acid) gradually elutes peptides based on their relative hydrophobicities, producing sharp, well-separated peaks even in complex mixtures.

What parameters impact peptide retention time in HPLC?

Several parameters influence peptide retention time in HPLC, including the peptide’s hydrophobicity, chain length, amino acid composition, and the presence of post-translational modifications. Additionally, chromatographic conditions such as column temperature, mobile phase composition, flow rate, and gradient slope significantly affect retention behavior. Even minor variations in pH or buffer concentration can shift elution times, highlighting the need for meticulous method control.

Why is peptide purity critical in drug research?

Peptide purity is essential in drug development because impurities can impact safety, efficacy, and stability. Contaminant peptides, truncated sequences, or chemical degradants may induce immunogenic responses or interfere with the biological activity of the therapeutic peptide. Regulatory guidelines for peptide-based drugs require thorough analytical validation to ensure purity, making high-resolution techniques like HPLC indispensable in pharmaceutical research.

How is HPLC integrated with mass spectrometry in proteomics?

In proteomics, HPLC is commonly coupled to mass spectrometry (MS) via an electrospray ionization (ESI) interface, forming an LC-MS or LC-MS/MS system. This integration allows real-time peptide separation followed by molecular identification and quantification. HPLC fractionates peptides based on their physicochemical properties, while MS detects their mass-to-charge ratios, providing rich structural and quantitative data critical for mapping proteins, analyzing post-translational modifications, and identifying biomarkers in complex biological samples.

References

Palmblad M, Pyatkivskyy Y. Solid-Phase Extraction Strategies to Surmount Body Fluid Sample Complexity in High-Throughput Mass Spectrometry-Based Proteomics. Journal of Biomedicine and Biotechnology.
Bugyi F, Turiák L, Drahos L, Tóth G. Optimization of Reversed-Phase Solid-Phase Extraction for Shotgun Proteomics Analysis. J Mass Spectrom. 2023
Thermo Fisher Scientific Application Note 21236. Generic SPE Protocol for Peptide Clean-up and Concentration.
Qu Y, Kim B, Koh J, Dallas DC. Comparison of Solid-Phase Extraction Sorbents for Monitoring Intestinal Survival of Caseinomacropeptide. Foods.
Lame ME, Yang H, Naughton S, Chambers EE. A Universal, Optimized SPE Protocol for Clean-up of Tryptic Peptides in Protein Bioanalysis. Waters Application Note, 2015
Bugyi F et al. Optimization of RP-SPE for Proteomics – Supporting Information/Troubleshooting.
