Peptide Isolation Methods: From Extraction to Purification

Author: Dr. Numan S.  Date: June 29, 2025

How to Choose the Right Peptide Isolation Technique for Your Needs

Selecting the appropriate peptide isolation strategy depends on the specific goals and constraints of your project. Here are some guidelines on choosing the right technique:

• Define Your Purpose and Purity Requirements: First, clarify how the isolated peptide will be used. If the peptide is for analytical purposes (e.g., mass spectrometry identification, sequencing, or as a standard), a single-step purification might suffice to achieve moderate purity. In contrast, if the peptide is intended for therapeutic use or sensitive functional assays, you’ll need higher purity and perhaps multiple purification steps. Regulatory or experimental standards will dictate the acceptable levels of impurities. Define a target purity (such as >90%, >95%, etc.) and yield that you need, as this will influence whether you opt for a quick method or a more rigorous multi-step protocol.
• Consider Peptide Properties and Sample Type: The properties of the peptide (size, charge, hydrophobicity) suggest which peptide isolation methods will work best. For example, small polar peptides might escape in flow-through if you only use reversed-phase SPE, but they could be captured by an ion-exchange resin. Very hydrophobic peptides might bind too strongly to a C_18 column and require a less hydrophobic stationary phase or an ion-pairing agent. If the peptide has a known isoelectric point, techniques like isoelectric focusing could be employed to focus and extract it.
• Use Orthogonal Techniques When Needed: A single method may not clean up everything if impurities have similar characteristics to your peptide. If an initial reversed-phase step doesn’t fully separate the target peptide from a co-eluting impurity, consider an orthogonal method next – for example, use affinity chromatography or an ion-exchange step if those properties differ between the peptide and the impurity. Orthogonal approaches exploit different properties (hydrophobic vs. charge vs. size), which increases the chance of resolving components that one method alone could not.
• Scale and Practical Considerations: The scale of isolation is a practical determinant. If you only have nanomoles of a peptide (as in some discovery research), techniques like micro-HPLC or even specialized microfluidic isolation may be necessary. Conversely, for gram-scale peptide production (as in peptide drug manufacturing or large-scale peptide synthesis), techniques that are easily scalable and cost-effective (like preparative RP-HPLC or membrane-based separation) are preferred. Evaluate available equipment and expertise: not every lab has access to high-end HPLC or CE systems. .
• Leverage Specific Affinity or Tags: If your peptide of interest can be tagged or has a unique feature, use it to your advantage. In a research setting, you might synthesize the peptide with a biotin tag and then use streptavidin beads to isolate it.
• Prototype and Optimize: If unsure which method will perform best, try small-scale tests of different methods. For instance, you could take a tiny sample of your extract and test binding on a C_18 SPE vs. a Cation-exchange SPE to see which retains the peptide better, or run a quick analytical HPLC vs. a gel to see where the peptide migrates.

In summary, choosing a peptide isolation technique is about aligning the method with the peptide’s characteristics and the project’s requirements. Consider the end use (which dictates purity needs), the peptide’s properties, the sample complexity, and logistical factors like scale and equipment. Often a sequential combination of methods is the answer. By thoughtfully selecting and possibly combining techniques, you can achieve efficient peptide isolation tailored to your specific needs. Engaging a reputable peptide vendor that provides raw synthesis displays or CoA aids in refining the isolation strategy tailored for your sample’s expected impurities.

Technological Advances in Peptide Isolation and Purification

Peptide isolation has seen significant technological advances in recent years, driven by the need for greater efficiency, resolution, and sustainability. Researchers and industry professionals have been innovating on both the small-scale analytical front and the large-scale production front. Some of the latest advancements include:

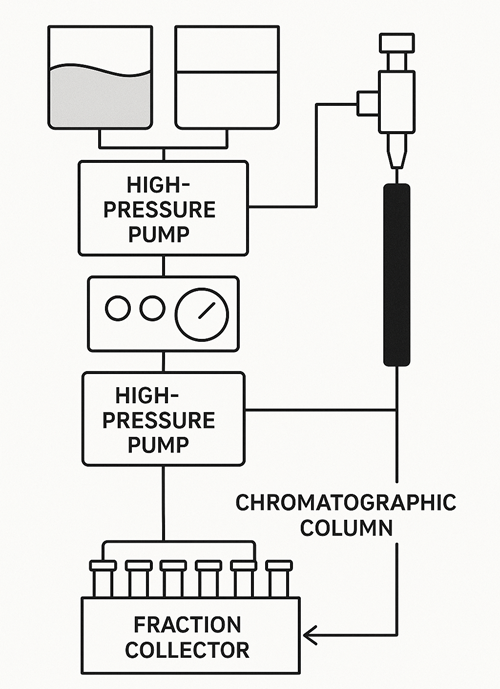

Enhanced Chromatography Techniques: While traditional RP-HPLC remains a mainstay, new modes and materials are expanding capabilities. Ultra-high-performance liquid chromatography (UHPLC) uses smaller particles and higher pressures to achieve better separation in shorter times, which is beneficial for both analytical and preparative work. Mixed-mode chromatography (MMC) columns have been developed that incorporate multiple interaction mechanisms (e.g., hydrophobic + ionic) on the same stationary phase [1], allowing separation of peptides that might be challenging on single-mode columns. Two-dimensional chromatography systems are more automated now, enabling complex peptide mixtures (like tryptic digests of proteomes) to be fractionated by, say, IEX in the first dimension and then by RP in the second, greatly increasing peak capacity. Another innovation is sub/supercritical fluid chromatography (SFC) for peptide separation, which uses compressed CO_2-based fluids – this can sometimes separate peptides that are intractable by traditional liquid phases and does so with reduced organic solvent usage. Computational advances also deserve mention: modern software can model peptide retention behavior and help predict optimal separation conditions, streamlining method development [1]. These chromatography techniques improvements collectively allow for higher resolution separations, faster run times, and more efficient scale-up.

Membrane-Based Separation and Integrative Processes: Membrane filtration technology has progressed to the point where, in some cases, it can rival chromatography for peptide purification. New membrane materials (polyethersulfone, polyacrylonitrile, etc.) and configurations offer highly selective separation ranges [1]. For example, nanofiltration membranes with precise cutoff ~200–1000 Da can retain small peptides while removing salts, achieving a level of purity comparable to an extra chromatographic step [1]. A notable development is the use of electrodialysis with ultrafiltration (EDUF), which combines an electric field and membrane filtration to separate peptides based on charge and size simultaneously [1].

Automation and High-Throughput Systems: Technological progress isn’t just in chemistry – automation has significantly improved how peptide isolation is performed. Robotic liquid handling systems can perform parallel SPE or multi-well plate filtrations, enabling high-throughput processing of many samples or conditions (valuable in method optimization or when producing libraries of peptides). HPLC systems now often come with auto-samplers and fraction collectors that can be programmed to carry out multi-step purifications (e.g., collect a peak, then automatically inject that fraction onto a second column). Process analytical technology (PAT) tools allow real-time monitoring of purity during production-scale peptide purifications, adjusting conditions on the fly to maintain quality.

Overall, these technological advances are expanding the toolkit available for peptide isolation. They allow chemists and biologists to isolate peptides more selectively, in higher yields, and often more quickly than before. Not every new method is needed for every peptide, but having these options means one can tailor the isolation strategy more precisely to the problem at hand. The trend is towards integrating multiple functionalities (e.g., production + purification, or multi-step separation in one apparatus) and towards making peptide purification more efficient and sustainable. As peptides continue to gain prominence in biotechnology and medicine, such advances ensure that isolation and purification will not be the bottleneck in bringing peptide innovations from the lab to the real world.

Applications of Isolated Peptides in Research, Biotechnology, and Medicine

The ability to isolate and purify peptides has opened the door to a vast array of applications across research, industry, and healthcare. Pure peptides are indispensable in many contexts because their specific biological activities can be harnessed once they are separated from confounding substances. Here we outline some major applications of isolated peptides:

Biomedical and Pharmaceutical Applications: Many drugs and diagnostic agents are peptides. Isolated peptides are used as therapeutic agents in treating diseases – examples include insulin (for diabetes), glucagon-like peptide-1 analogs (for diabetes/obesity), peptide hormones like leuprolide (for cancer therapy), and numerous others.

Biotechnology and Industrial Applications: In the biotech realm, isolated peptides are used as enzymes or enzyme substrates, in the development of biosensors, and even in material science. For example, some peptides have antimicrobial properties and are being incorporated into coatings or packaging to prevent microbial growth.

Research and Laboratory Use: In academic and clinical research labs, isolated peptides are everyday tools. Biochemists use peptide substrates to measure enzyme kinetics (only if the peptide substrate is pure can the enzyme’s activity be accurately characterized).

Emerging and Niche Applications: With ongoing research, even more applications for isolated peptides continue to emerge. Peptides are being designed as “smart” therapeutics that can respond to certain stimuli (for instance, a peptide that remains inactive until a disease-specific enzyme cleaves it, releasing an active fragment).

In all these examples, the themes are clear: without isolated, pure peptides, it would be impossible to precisely attribute a biological effect or a material property to a given peptide sequence. Impurities or other proteins would cloud the results or functionality. The peptide isolation methods discussed (extraction, chromatography, etc.) are thus enabling technologies – they make it feasible to explore peptide science and utilize peptides in practice.

Peptides, often referred to as “nature’s toolkit” for biological functions, have become tools in our toolkit for innovation in medicine and technology. As our ability to isolate and purify peptides continues to improve (through advances outlined earlier), we can expect peptides to play an even bigger role in research breakthroughs and biotechnological applications. From bench-to-bedside, the purified peptide is a key ingredient driving progress in numerous fields.
